PPM-DT7B
Datasheet
Please click the button below to download the complete product datasheet (PDF format).
Description

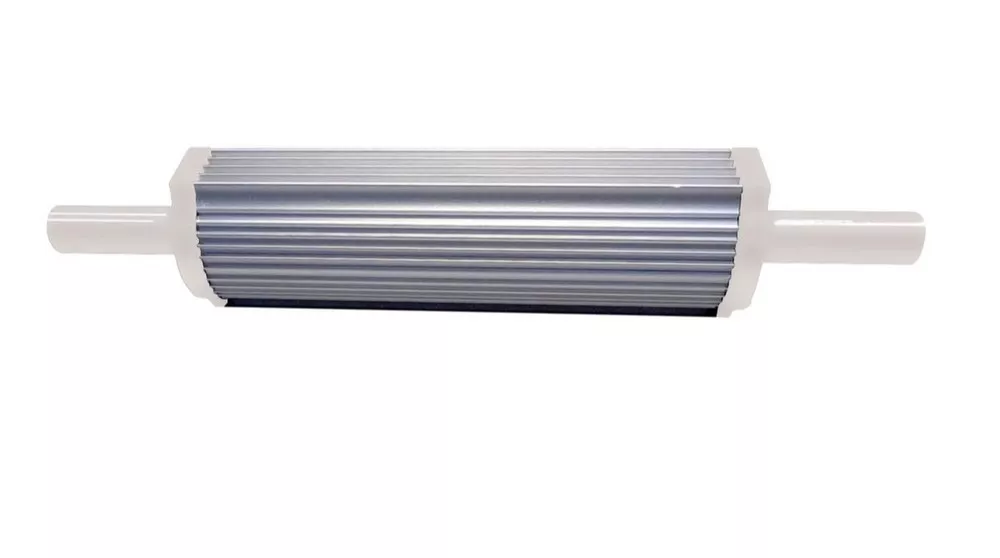

PPM-DT7B
The robust, medium-duty member of the DT7 metal series. Featuring a high-performance anodized aluminum body that provides superior heat dissipation, it delivers 120-160mW of UVC power at a steady 2.2L/min flow, making it the trusted choice for demanding commercial water systems.
- Aluminum Housing for Long-Run Stability: The premium anodized aluminum shell ensures excellent thermal management, allowing the PPM-DT7B to operate continuously and reliably in high-demand commercial environments.
- High-Power 120-160mW UVC Output: Ensures rapid and effective 99.99% sterilization even under medium-to-high flow rates, providing safe drinking water at all times.
- Built for Medium Commercial Use: With a 2.0-2.2L/min flow rate, it's perfectly sized for school drinking fountains, restaurant water dispensers, and office purification systems.
- Durable & Safe Construction: Water-contact parts are made from food-grade POM and JGSL-2 quartz glass, ensuring safety, hygiene, and long-term resistance to scale and corrosion.
Typical Applications
Medium Commercial Water Purification Systems

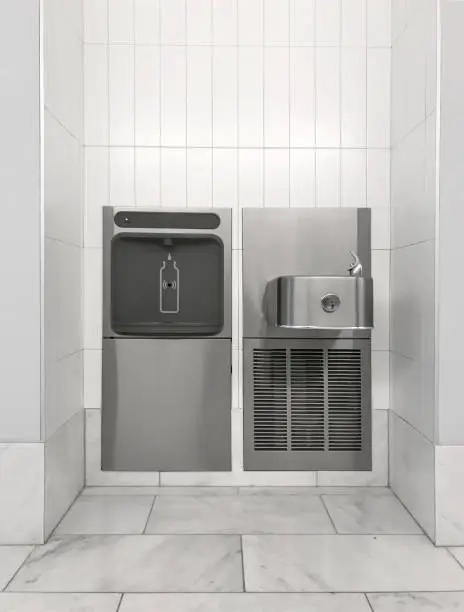

School & Hospital Drinking Fountains

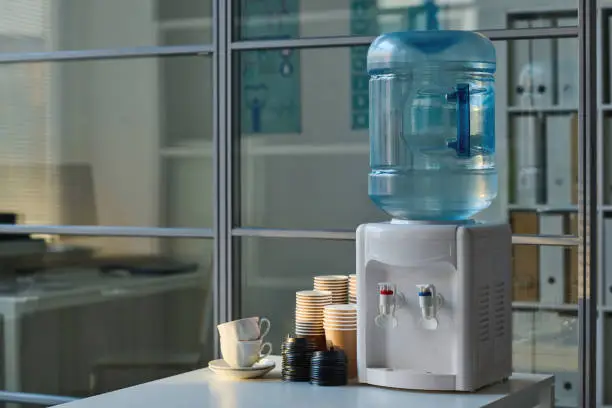

Restaurant & Office Water Dispensers
Additional information
| Wavelength | 270 – 280 nm |
|---|---|
| Operating Voltage | DC 12V/24V |
| Disinfection Rate | 99.99% |
| Water Connection | 1/4" or 3/8" Quick Connect |
| Flow Rate | 2.0 – 2.2 L/min |
| Radiant Power | 120 – 160 mW |
