Quartz Components
Why Choose Our Quartz Factory
With our own quartz manufacturing facility, we provide high-purity quartz tubes, quartz caps and quartz plates for UVC lamps and disinfection systems.
Advanced Quartz Manufacturing Capability
From quartz material processing to finished components, we provide reliable quartz solutions for UVC applications.
Quartz Processing
High-purity quartz materials with stable optical performance.
Precision Cutting
Accurate processing to meet different size requirements.
Quality Inspection
Strict inspection ensures consistent product quality.
OEM Customization
Customized dimensions and designs available.

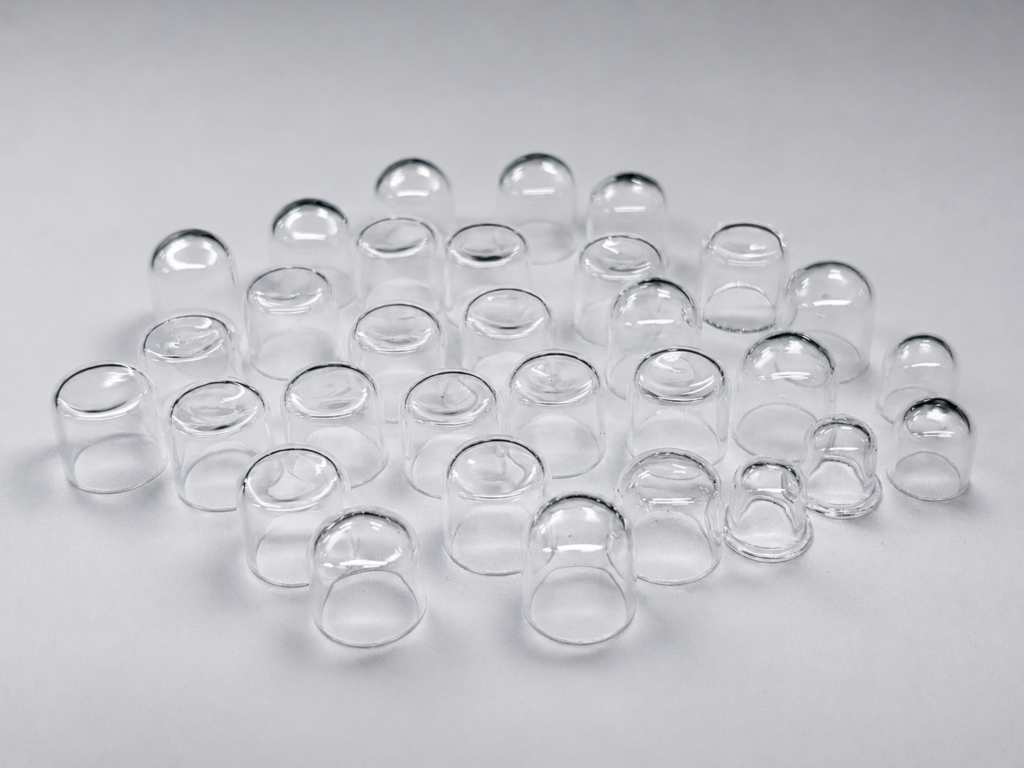

Quartz Caps for UVC Lamp Applications
High-purity quartz caps designed for efficient UVC transmission and reliable lamp protection.
- High UV light transmission
- Excellent heat resistance
- Stable and durable performance
| Product | Specification |
|---|---|
| Flanged Quartz Cap | Φ9 × 1 × Φ10 mm, Flange Diameter Φ11 mm |
| Round Head Quartz Cap | Φ12 × 18.75 × 1 mm Φ12 × 23 × 1 mm Φ8 × 8 × 1 mm |
| Quartz Cap | Φ13 × 12 × 1 mm, Flat Bottom Φ13 × 14 × 1 mm, Round Bottom |

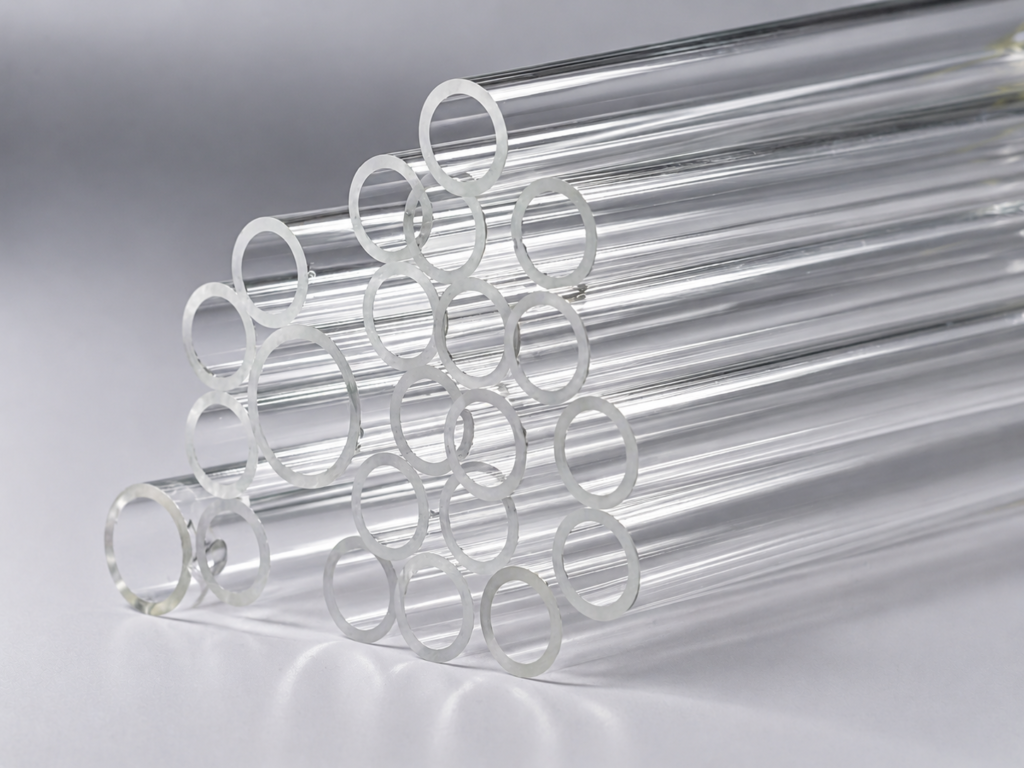

Quartz Tubes for UVC Lamp Applications
Premium quartz tubes for efficient UVC lamp performance.
- High Purity Quartz
- Excellent Light Transmission
- Precise Dimensions
| Product | Specification |
|---|---|
| Quartz Tube | Φ8 × Φ6 × 82.6 mm |
| Quartz Tube | Φ10 × Φ8 × 26 mm |
| Quartz Tube | Φ10 × Φ8 × 60 mm |
| Quartz Tube | Φ10 × Φ8 × 80 mm |

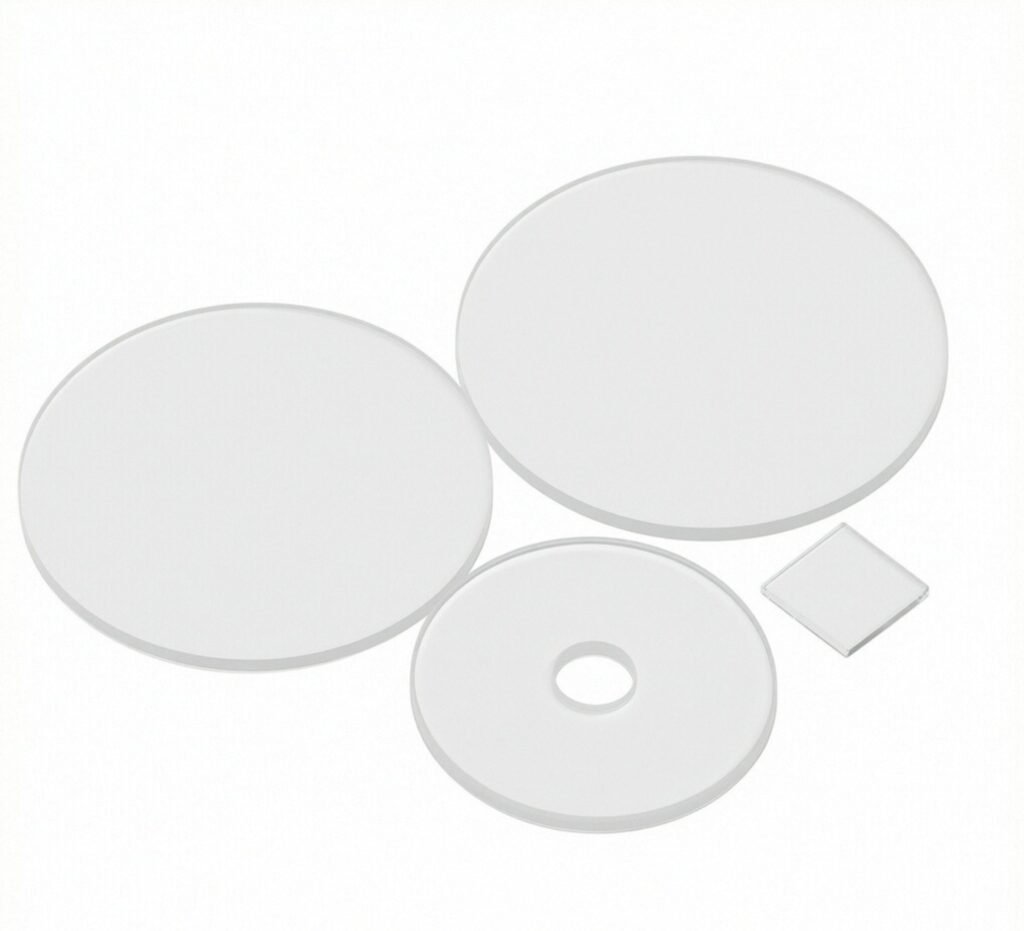

Quartz Plates for UVC Lamp Applications
Precision quartz plates for advanced UVC applications.
- Optical Clarity
- Chemical Resistance
- Custom Thickness
| Product | Specification |
|---|---|
| Quartz Round Disc | Φ10 × 1 mm Φ13 × 1 mm Φ12 × 1.5 mm |
| Perforated Quartz Round Disc | Φ31 × 1.5 mm |
| Quartz Flat Plate | 17.83 × 11.93 × 1 mm 146 × 11.9 × 1 mm 13 × 13 × 1 mm |
Applications of Quartz Components
Our quartz components are widely used in UVC disinfection systems, providing reliable solutions for water, air and surface sterilization.
Water Disinfection
Air Purification
Industrial Equipment
UVC Lamp Systems
Contact us for OEM quartz solutions.
Need Custom Quartz Components?
Tell us your quartz component requirements and our factory experts will provide a suitable solution.
